Automatic Screw Feeder

  1. Automatic Screw Feeder

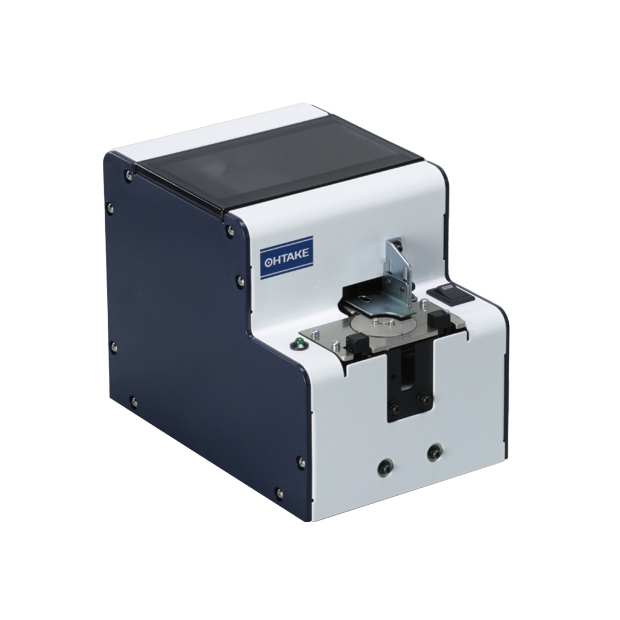

Robotic-NSRI type

Robotic-NSRI type

●High speed and High Precision
Provides high precision screw supply for automation applications

●Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming

●Available to be exchanged with 8 different rail sizes.

●Compatible with different manufacturing settings
Simple installation allows applications in various production environments.
－ ＋
Add to cart
/
DETAIL

Supported
screw
diameter
(mm)		 Main component type Swap rail set type
NSBI
Series		 NSRI
Series		 NSRI-B
Series
(brushless motor type)		 NSBI
Series		 NSRI
Series		 NSRI-B
Series
(brushless motor type)
1.0 NSBI-10 NSRI-10 NSRI-10B BI10SET RI10SET RI10SET2
1.2 NSBI-12 NSRI-12 NSRI-12B BI12SET RI12SET RI12SET2
1.4 NSBI-14 NSRI-14 NSRI-14B BI14SET RI14SET RI14SET2
1.7 NSBI-17 NSRI-17 NSRI-17B BI17SET RI17SET RI17SET2
2.0 NSBI-20 NSRI-20 NSRI-20B BI20SET RI20SET RI20SET2
2.3 NSBI-23 NSRI-23 NSRI-23B BI23SET RI23SET RI23SET2
2.6 NSBI-26 NSRI-26 NSRI-26B BI26SET RI26SET RI26SET2
3.0 NSBI-30 NSRI-30 NSRI-30B BI30SET RI30SET RI30SET2
