Supported screw diameter (mm) |
Main component type | Swap rail set type | ||||
OM-26M Series |
OM-26R Series |
OM-26RB Series (brushless motor type) |
OM-26M Series |
OM-26R Series |
OM-26RB Series (brushless motor type) |
|
---|---|---|---|---|---|---|
2.0 | OM-26M20 | OM-26R20 | OM-26RB20 | OMM20SET | OMR20SET | OMR20SET2 |
2.3 | OM-26M23 | OM-26R23 | OM-26RB23 | OMM23SET | OMR23SET | OMR23SET2 |
2.6 | OM-26M26 | OM-26R26 | OM-26RB26 | OMM26SET | OMR26SET | OMR26SET2 |
3.0 | OM-26M30 | OM-26R30 | OM-26RB30 | OMM30SET | OMR30SET | OMR30SET2 |
3.5 | OM-26M35 | OM-26R35 | OM-26RB35 | OMM35SET | OMR35SET | OMR35SET2 |
4.0 | OM-26M40 | OM-26R40 | OM-26RB40 | OMM40SET | OMR40SET | OMR40SET2 |
5.0 | OM-26M50 | OM-26R50 | OM-26RB50 | OMM50SET | OMR50SET | OMR50SET2 |
6.0 | OM-26M60 | OM-26R60 | OM-26RB60 | OMM60SET | OMR60SET | OMR60SET2 |

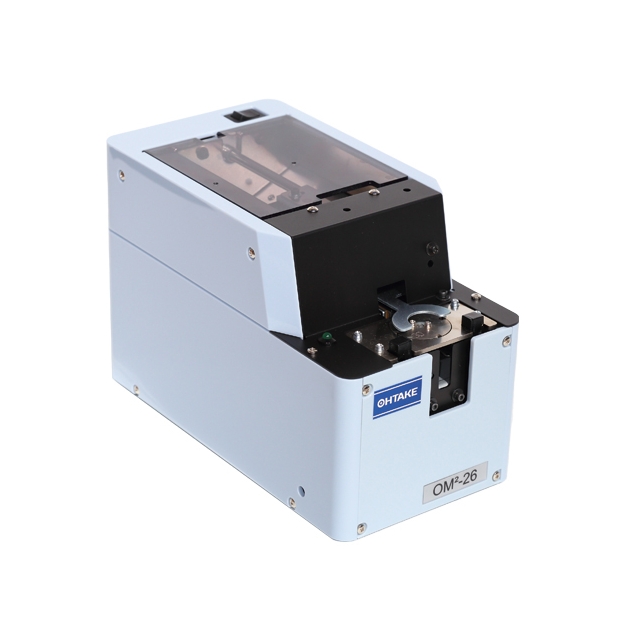

Automatic Screw Feeder
Robotic-OM-26R type
Robotic-OM-26R type
●Large capacity of 300cc
Can store up to 780 pieces of M3x12mm screws
●Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming
●Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.
●Options available
Screw level sensor is available for automatic notification of low remaining screws, or additional hopper is available for storage expansion.
Can store up to 780 pieces of M3x12mm screws
●Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming
●Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.
●Options available
Screw level sensor is available for automatic notification of low remaining screws, or additional hopper is available for storage expansion.
DETAIL
