Automatic Screw Feeder

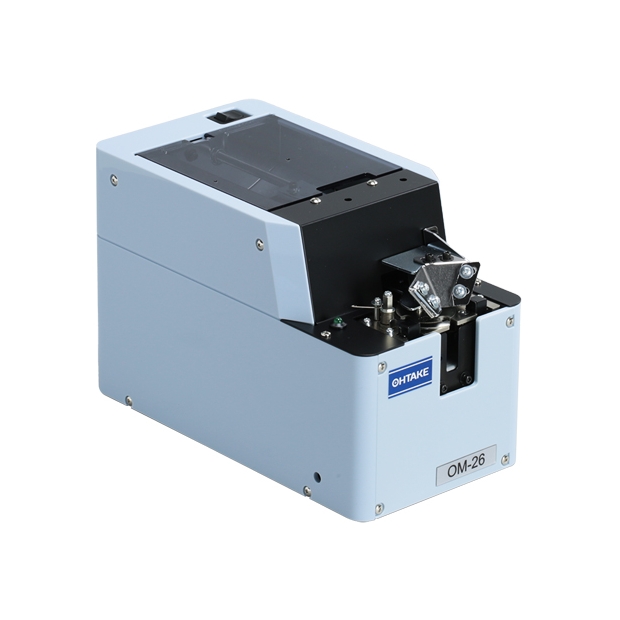

OM-26M Automatic Screw Feeder

OM-26M Automatic Screw Feeder

●Large capacity of 300cc
Can store up to 780 pieces of M3x12mm screws

●Higher efficiency with rotary disc escaper
Disc escaper separates screw one by one, achieves high precision without screw jamming

●Compatible with a wide range of screw types
Stable feeding supply for spring-washer screws or other standard screws.

●Options available
Screw level sensor is available for automatic notification of low remaining screws, or additional hopper is available for storage expansion.
DETAIL
Supported
screw
diameter
(mm)
Main component type Swap rail set type
OM-26M
Series
OM-26R
Series
OM-26RB
Series
OM-26M
Series
OM-26R
Series
OM-26RB
Series
2.0 OM-26M20 OM-26R20 OM-26RB20 OMM20SET OMR20SET OMR20SET2
2.3 OM-26M23 OM-26R23 OM-26RB23 OMM23SET OMR23SET OMR23SET2
2.6 OM-26M26 OM-26R26 OM-26RB26 OMM26SET OMR26SET OMR26SET2
3.0 OM-26M30 OM-26R30 OM-26RB30 OMM30SET OMR30SET OMR30SET2
3.5 OM-26M35 OM-26R35 OM-26RB35 OMM35SET OMR35SET OMR35SET2
4.0 OM-26M40 OM-26R40 OM-26RB40 OMM40SET OMR40SET OMR40SET2
5.0 OM-26M50 OM-26R50 OM-26RB50 OMM50SET OMR50SET OMR50SET2
6.0 OM-26M60 OM-26R60 OM-26RB60 OMM60SET OMR60SET OMR60SET2
